September 2026 · No. 07 · Edge AI Computer
Four cameras in. Real-time AI out.
A fanless Jetson Orin™ NX edge-AI mission computer — the RGTS-RML-EAI-NX-TVI.
The RGTS-RML-EAI-NX-TVI is a fanless edge-AI mission computer built on the NVIDIA Jetson Orin™ NX. It pulls four analog camera feeds (TVI / PAL / CVBS) straight off the vehicle and runs perception on them in place — turning cameras you already have into real-time AI sensors. It is the compute that sits behind the dashboard, not another screen on it.
Signal comes in as four analog channels over rugged connectors; a single HDMI serves optional video out. Storage is M.2 PCIe Gen4 NVMe up to 2 TB, networking is GbE plus CAN bus, and a 12–36 VDC wide-range input runs it directly from 24 V vehicle power.
Key Capabilities
- Jetson Orin NX 1024 CUDA / 32 Tensor / 2× NVDLA v2
- 157 TOPS edge inference — all four channels at once
- 4× analog in TVI / PAL / CVBS over rugged BNC
- Fanless conduction-cooled aluminium, IP66
- 16 GB LPDDR5 · M.2 PCIe Gen4 NVMe to 2 TB
- 12–36 VDC 28 V nom. vehicle power, 40 W typ.

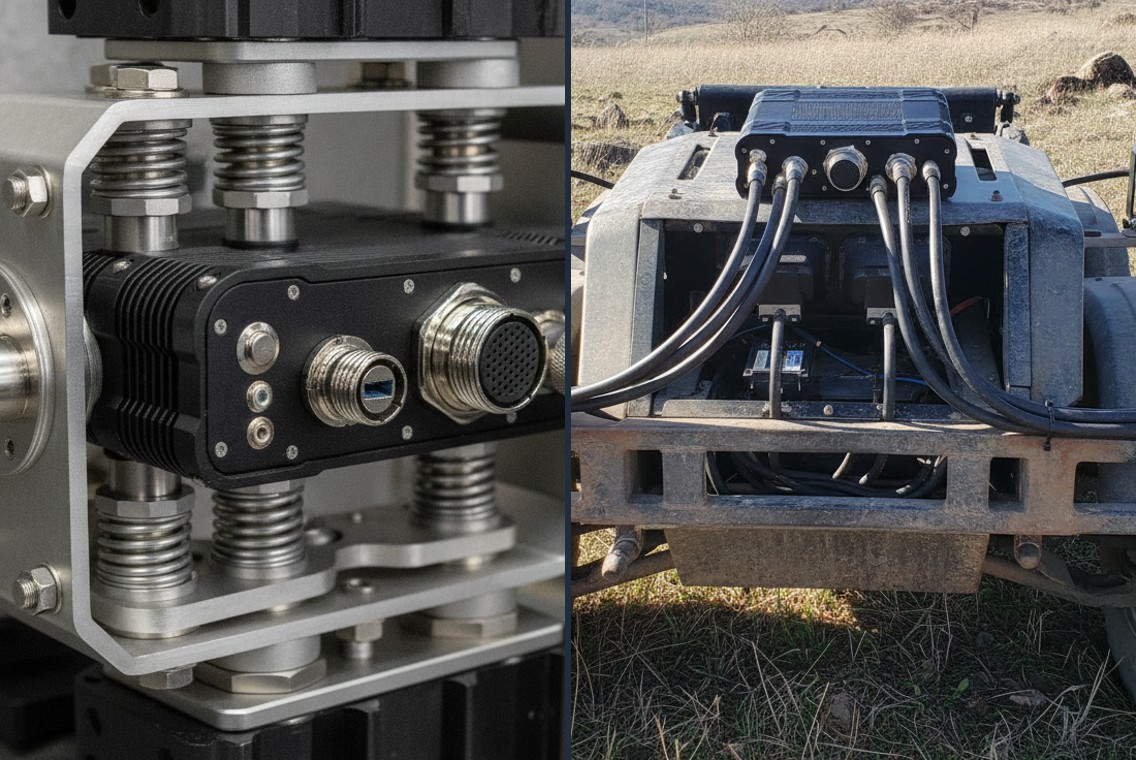

Perception in the Equipment Bay
The Jetson Orin NX module delivers up to 157 TOPS across 1024 CUDA® cores, 32 Tensor cores and dual NVDLA v2 engines — headroom to inference all four channels concurrently. There are no fans: a conduction-cooled aluminium chassis carries heat out to the case, so there is nothing to clog or fail under dust, shock and vibration. A 12–36 VDC wide-range input runs it directly from 24 V vehicle power.

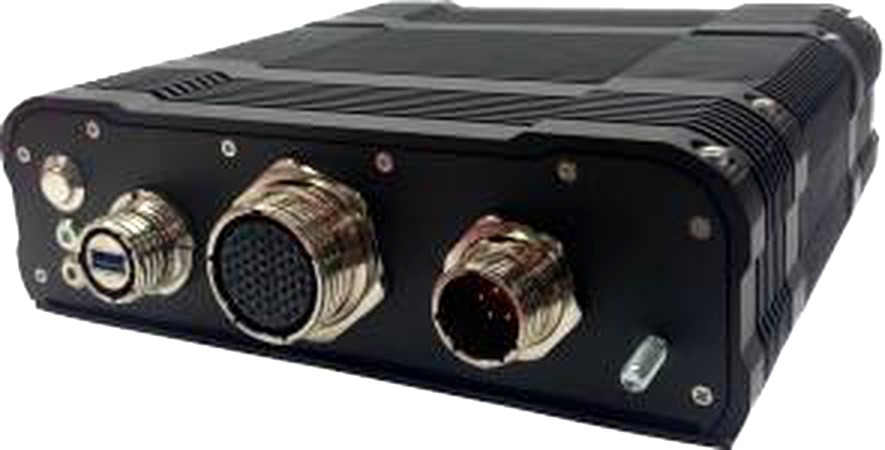

Product Spotlight
RGTS-RML-EAI-NX-TVI
Fanless Edge-AI Mission Computer · Jetson Orin NX · IP66
- NVIDIA Jetson Orin NX · up to 157 TOPS · 16 GB LPDDR5
- 4 × analog in (TVI / PAL / CVBS) · 1 × HDMI out
- M.2 PCIe Gen4 NVMe to 2 TB · GbE LAN · CAN bus
- 28 V nom. (12–36 VDC) · 40 W typ. / 65 W max
- Fanless, conduction-cooled · IP66 · 0~+50°C
- 233 × 210 × 71.5 mm · ~2.2 kg · designed to meet MIL-STD-810H / 461G
