June 2026 · No. 01 · Rugged / Military
Three Screens. One Rugged Console.
Full situational awareness in a 2U drawer — the LRK-17W-2U-3LCD.

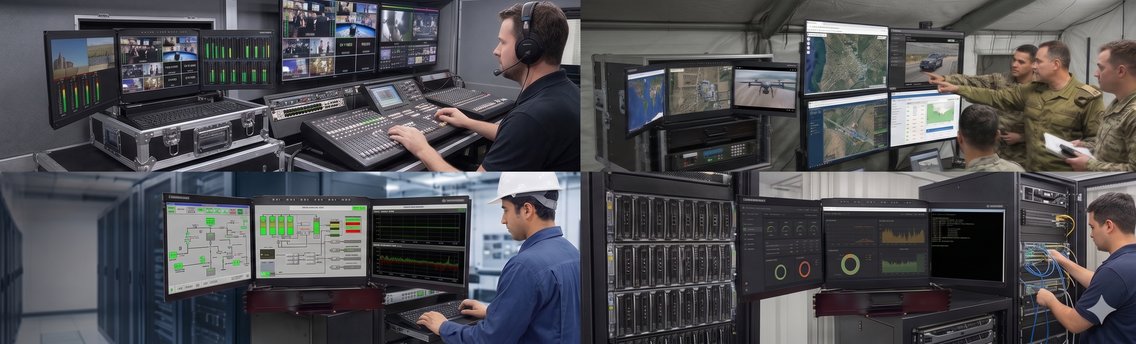

Modern command, vehicle, and shipboard operations rarely run on a single feed. Operators track a map, a sensor view, and a status panel at the same time — and the hardware behind them still has to survive shock, vibration, dust, and wide temperature swings. A standard monitor cannot do both.
The LRK-17W-2U-3LCD answers with three full-HD 17.3" displays and a complete keyboard folded into a single 2U drawer. It slides out on dual rails, deploys the three screens in seconds for a panoramic working surface, and stows just as fast when the rack has to move. One drawer replaces a wall of separate monitors — without giving up ruggedness.
Built around DisplayPort 1.2 and optional HDMI inputs, front-panel OSD controls, and a sealed, field-ready chassis, it is designed to drop straight into existing 19" racks in defense, marine, and heavy-industry deployments.
Key Capabilities
- 3 × full-HD 17.3" displays in one 2U drawer
- Seconds to deploy or stow on dual slide rails
- -10 to 55°C operating, -30 to 70°C storage
- 108-key keyboard + keypad, front OSD
- 3 × DisplayPort 1.2 + 3 × HDMI 1.4 (opt.)
- +12V DC 45W typ., drops into any 19" rack
Engineered for the Field
A 18 kg sealed chassis on dual slide rails — 406 mm of travel for the displays, 330 mm for the keyboard — keeps the console stable under vibration while staying serviceable. Backlight MTBF of 30,000 hours and a 10–95% non-condensing humidity rating mean it keeps working where commercial gear quits.
Product Spotlight

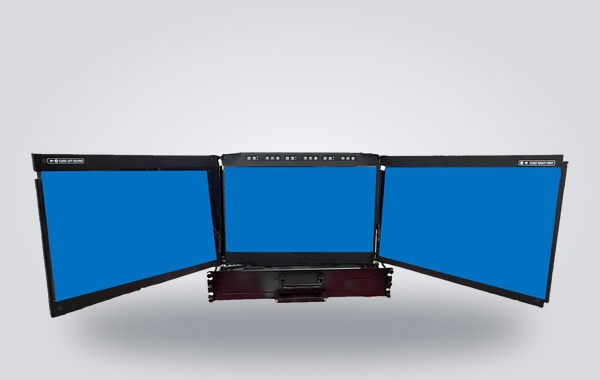

LRK-17W-2U-3LCD
Rugged 17.3" Three-Display Keyboard Console
- 3 × 17.3" LED, 1920×1080, 300 nits
- 3 × DisplayPort 1.2 + 3 × HDMI 1.4 (opt.)
- 108-key keyboard + keypad, front OSD
- Dual slide rail, 2U, -10~55°C, +12V DC
- 45W typ., 18 kg, 30,000h backlight MTBF
