June 2026 · No. 02 · Panel PC
The Whole Line on One Screen.
A 24" fanless HMI built for the factory floor — the RGTS-PPC-24WL-PM.

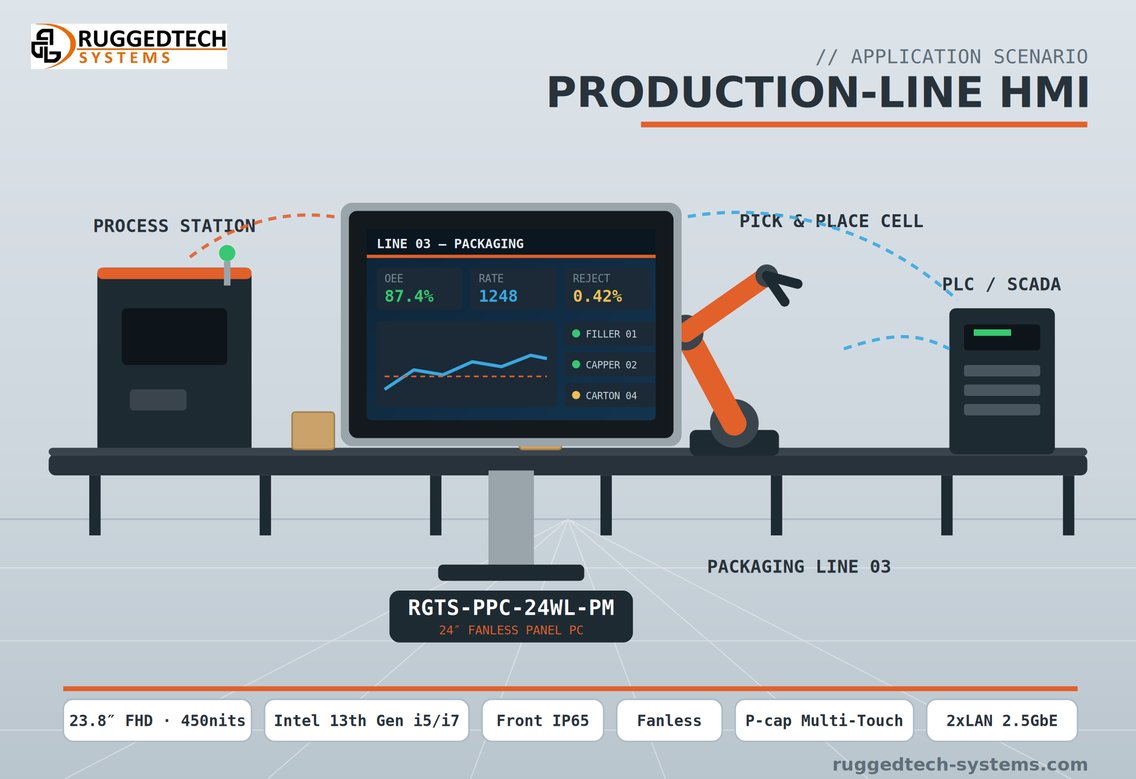

On a busy production line, the HMI is where everything meets: machine states, throughput, alarms, recipe changes. Squeeze that onto a small screen and operators scroll instead of act — while dust, washdown wipe-downs, and 24/7 duty quietly kill commercial-grade hardware.
The RGTS-PPC-24WL-PM puts the entire line on a single 23.8" Full HD multi-touch surface. A 450-nit panel stays readable under factory lighting, projected-capacitive touch handles fast operator input, and 13th Gen Intel® Core™ processing runs SCADA visualisation, PLC supervision and edge workloads side by side — with no fan to fail or pull dust through the chassis.
Dual LAN — including 2.5GbE — keeps the PLC network and plant IT on separate ports, and with VESA or panel mounting plus 9–36V DC or AC power options, it drops straight onto pedestals, mounting arms, and machine enclosures across the plant.
Key Capabilities
- 23.8" Full HD LED panel, 450 nits, 1000:1
- P-cap multi-touch or tempered glass front
- Intel® 13th Gen Core™ i5 / i7, DDR5 up to 64 GB
- Fanless front IP65, 0–55°C operating
- GbE + 2.5GbE dual LAN, 4 × USB 3.2, USB-C (DP Alt)
- 12V DC default; 9–36V DC or AC optional, 45W typ.
Engineered for 24/7 Duty
A sealed IP65 front and fanless heat-dissipation design remove the two classic failure points on the factory floor: ingress and moving parts. M.2 PCIe Gen4 storage, a 0–255 s watchdog timer, and Windows 11 / Linux support keep the platform serviceable for the long production cycles European integrators plan around.
Product Spotlight

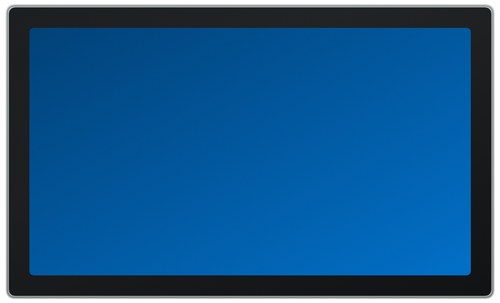

RGTS-PPC-24WL-PM
24" Fanless Multi-Touch Panel PC · Rugged Flat Surface Series
- 23.8" LED, 1920×1080, 450 nits, 1000:1
- Intel® 13th Gen Core™ i5 / i7, 2 × DDR5 to 64 GB
- M.2 2280 PCIe Gen4, GbE + 2.5GbE LAN
- 4 × USB 3.2, USB-C (DP Alt), RS232, DP + HDMI out
- Front IP65, fanless, 0~55°C, VESA / panel mount
