Readable at High Noon.

A 1,000-nit, MIL-STD military display with D38999 I/O — the RGTS-RML-12R-RK.

RGTS-RML-12R-RK military display on a pedestal beside a command vehicle and SATCOM mast in a sunlit field

Vehicle and field deployments are merciless on displays: direct sunlight washes out ordinary panels, engine vibration loosens consumer connectors, and a vehicle's DC bus swings far outside what commercial supplies tolerate. A display that fails any of these takes the whole mission console down with it.

The RGTS-RML-12R-RK is built for exactly this duty. A 12.1" XGA panel delivers 1,000 cd/m² of sunlight-readable brightness with 0–100% OSD dimming for night operations. The compact IP66 housing is qualified to MIL-STD-810G for shock, vibration, humidity and temperature extremes, and to MIL-STD-461F (CE102, RE102) for EMI — backed by a front EMI mesh filter and an integrated air-vent pressure regulator.

Signal and power arrive through sealed military circular connectors: HDMI and USB-touch on M16, optional VGA on D38999, and a 9–36V wide-range DC input with reverse-polarity protection that connects straight to vehicle power. Fanless, -20~70°C rated, and mountable by 100×100 VESA or optional panel mount.

Key Capabilities

  • 1,000 nits sunlight-readable 12.1" XGA panel
  • MIL-STD-810G shock, vibration & climate qualified
  • MIL-STD-461F EMI compliance + front EMI mesh
  • D38999 / M16 sealed circular connectors
  • -20~70°C operating, fanless, IP66 housing
  • 9–36V DC vehicle power, 20W typ., reverse protected

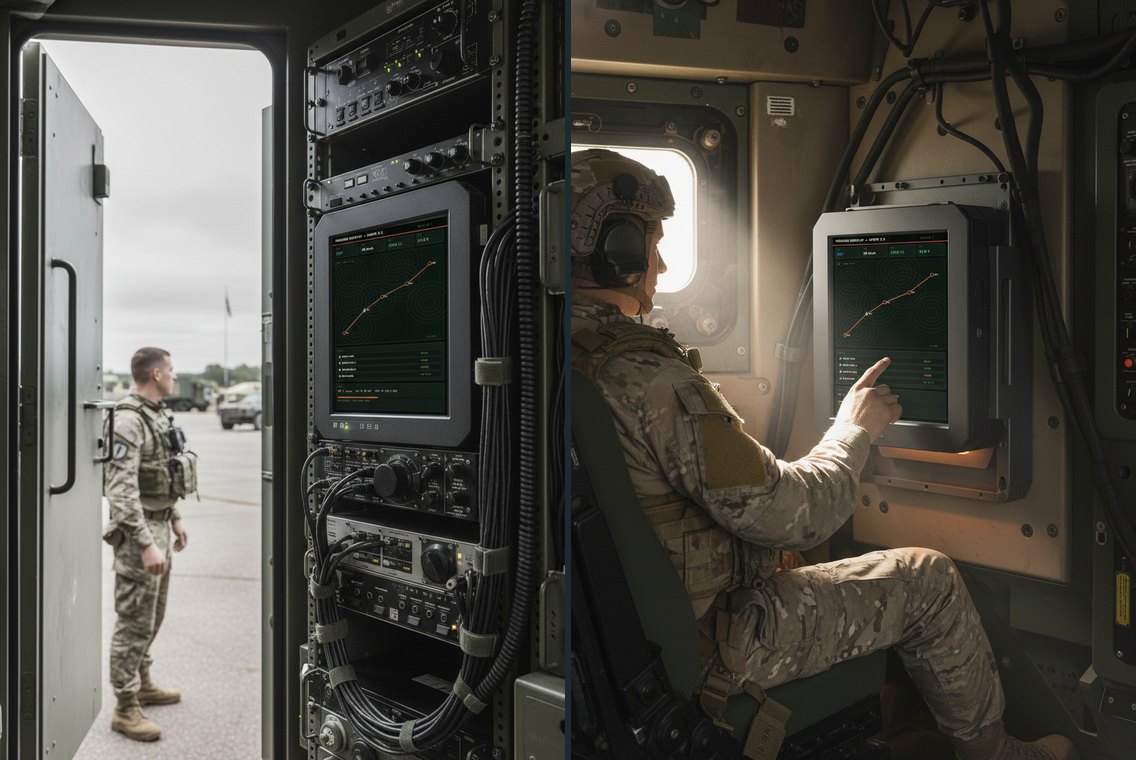

RGTS-RML-12R-RK rack-mounted in a field command vehicle and panel-mounted in a vehicle cabin, both running the mission display
The same sealed display in the field — rack-mounted in a command vehicle, panel-mounted in the cabin — readable in full sun, dimmable to zero for night ops.

Engineered for the Field

MIL-STD-810G methods 516.6 (shock) and 514.6 (vibration) are the benchmarks written for wheeled and tracked platforms — this display is tested to both, plus humidity and temperature methods. An optional 5-wire resistive touch screen takes gloved input, optional optical bonding boosts contrast under glare, and Windows and Linux are both supported. The default black housing can be customised for platform-specific finishes.

Ask an Engineer about the RGTS-RML-12R-RK Request a Quote

Product Spotlight

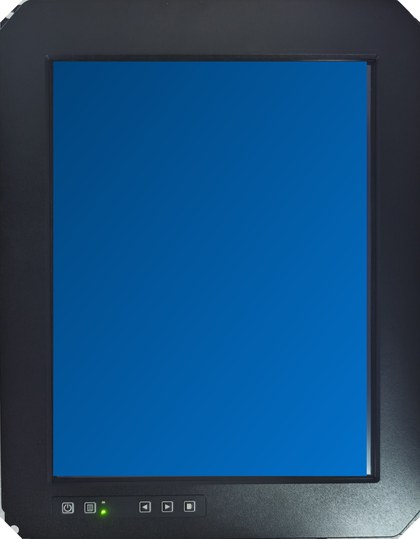

RGTS-RML-12R-RK 12.1-inch military grade display

RGTS-RML-12R-RK

12.1" Military Grade Display · IP66

  • 12.1" (4:3) 1024×768, 1,000 nits, 1000:1
  • MIL-STD-810G · MIL-STD-461F · front EMI mesh
  • D38999 power · M16 HDMI & USB-touch · VGA opt.
  • 9–36V DC, 20W typ., reverse-polarity protected
  • -20~70°C · fanless · 100×100 VESA / panel mount opt.
